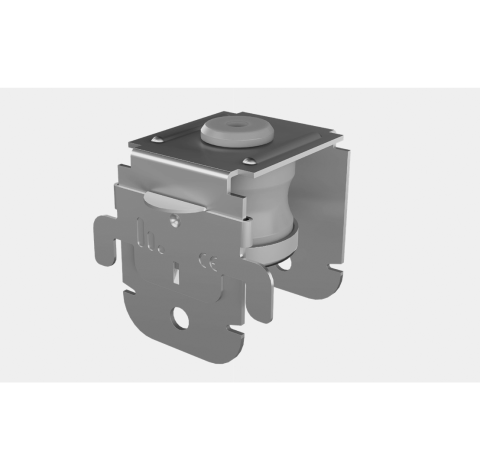

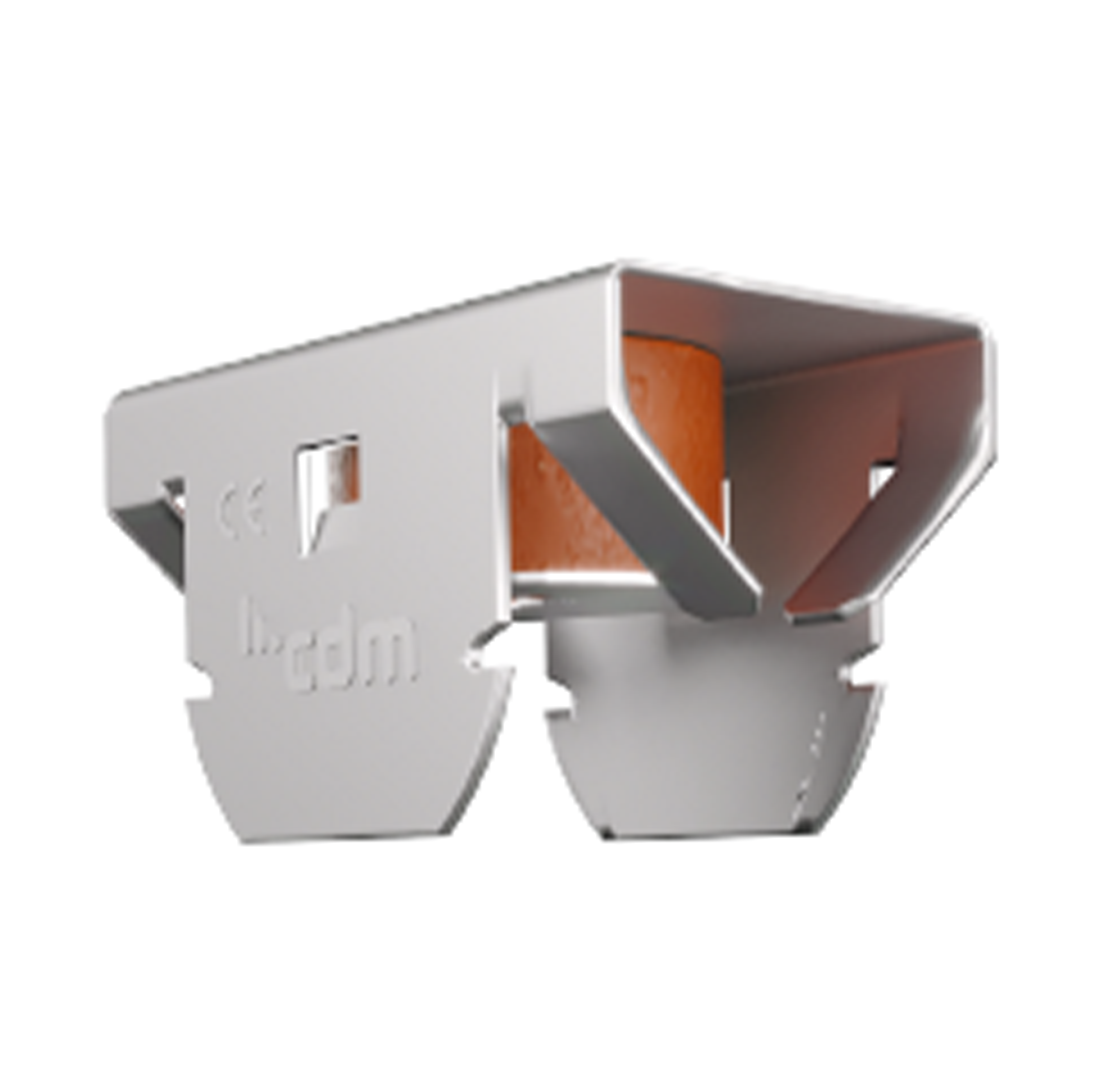

• Stravilink CC40

Advantages

• Cost effective
• Quick and easy to install
  Hangers can be ordered in two different stiffnesses:
  Stravilink CC40-150    10-20 kg per hanger
  Stravilink CC40-350    20-45 kg per hanger
• Natural frequency between 12 and 18Hz
• Failsafe easily engaged – as shown
• System comes optional with an elastomer washer to allow direct fixation to the ceiling
• Variable void depths are achievable (Stravilink CC40 hanger depth is 40 mm)
• Steel elements are Zinc plated
• For optimum results resilient perimeter strips should be used to provide lateral isolation between the suspended ceiling and adjacent walls. A wide range of roll sizes are available
• To specify which Stravilink CC40 hangers you require CDM Stravitec’s engineers will need the following information:
  The weight and construction of the supported ceiling – this will determine the type of hanger
  The required void between the supporting soffit and the suspended ceiling

*Previously known as CDM-CC40
