• Stravilink CC40-P

Acoustic solution for floating isolated floors

  1. General Details

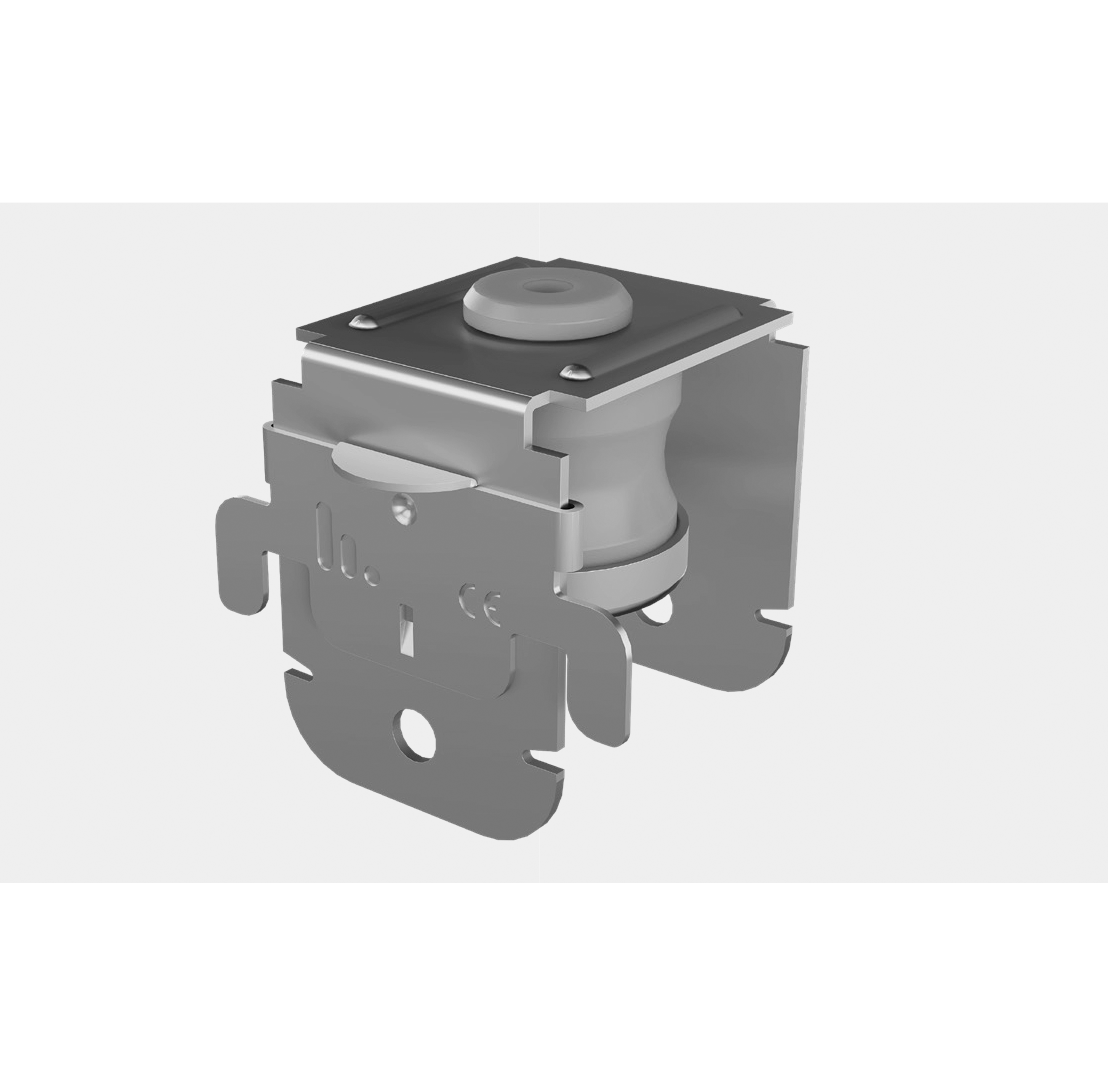

    Stravilink CC40-P is a Channel Clip using elastomeric Pads, designed for suspending acoustic ceilings with 47 mm steel ceiling channels and optimising sound insulation between vertically arranged rooms.



    Features

    • Suitable for installation on various structures, including concrete and cross-laminated timber (CLT) slabs
    • Designed to be compatible with 47 mm galvanized steel ceiling channels
    • Equipped with elastomeric pads featuring a natural frequency around 8 Hz at design load
    • Color-coded pad options available, supporting loads from 10 to 45 kg
    • Requires a minimum void depth of 65 mm. Variable void depth is possible
    • The elastomeric pad extends beyond the metal clip, preventing direct contact with the soffit when fixed to the ceiling
    • Includes a safety clip to prevent ceiling channel deformation due to excess weight
    • Effortless snap-in design lets the hanger quickly and securely attach to the ceiling channel
    • No specialized tools are required for installation
    • Simple and fast installation process
    • Cost-effective solution
