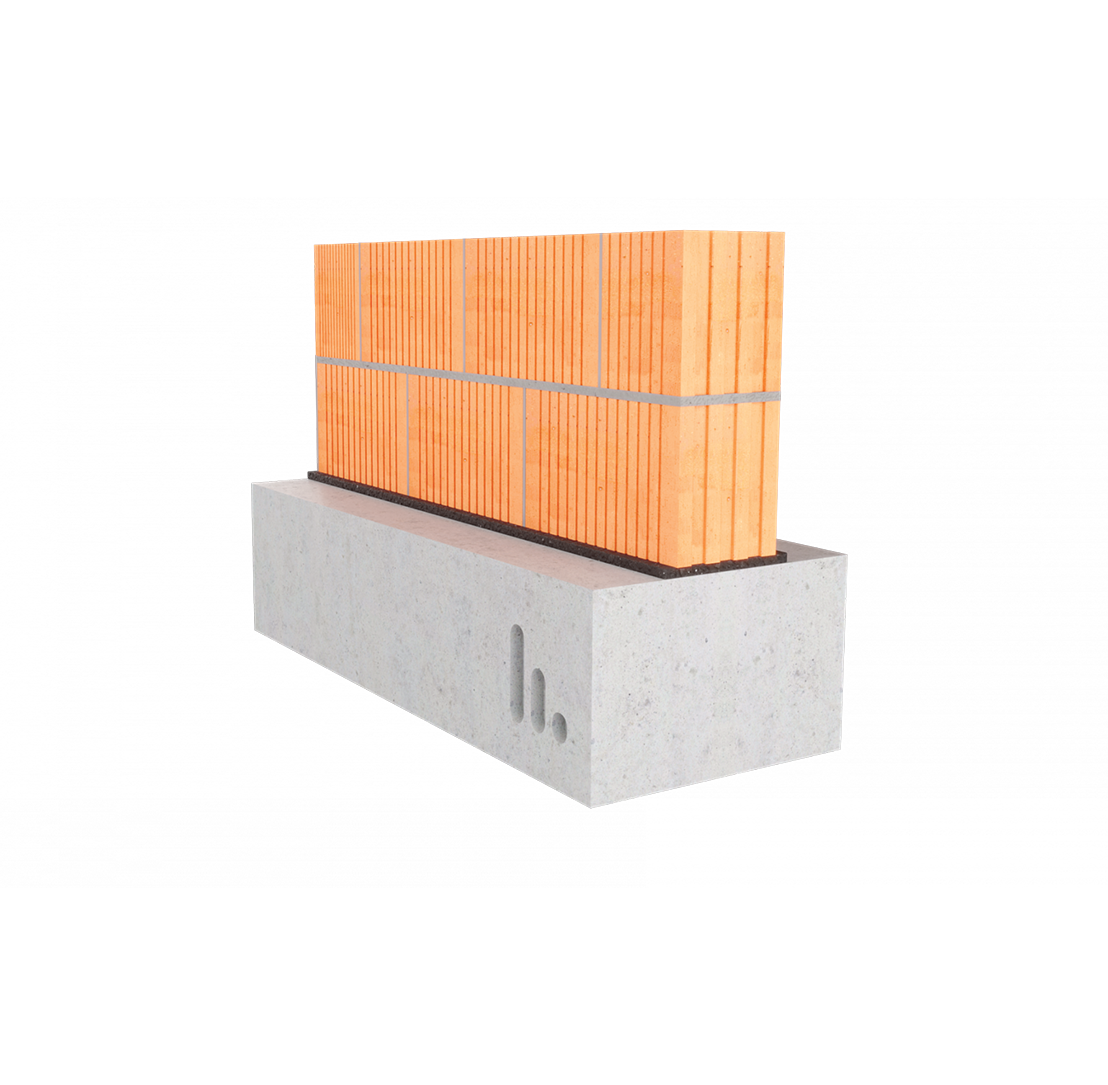

• Stravilink WallStrip

Characteristics

• High load capacity, offering a wide range of workloads
• Tuned dynamic performance versus static stiffness
• Structural function by decreasing cracks effects on the wall (helps prevent microcracking due to differential movement of the structure)
• Excellent resistance to alkaline water environment (direct contact with wet concrete)
• Excellent adhesion to materials such as gypsum and concrete due to its rugged surface, ensuring an excellent lateral stiffness
• Excellent long term behaviour (low creep / differential deflection)
• Standard thicknesses of 5 and 10 mm
• Standard widths of 130 and 200 mm (other widths available on request)
• Quick and easy to install
• Easy to cut

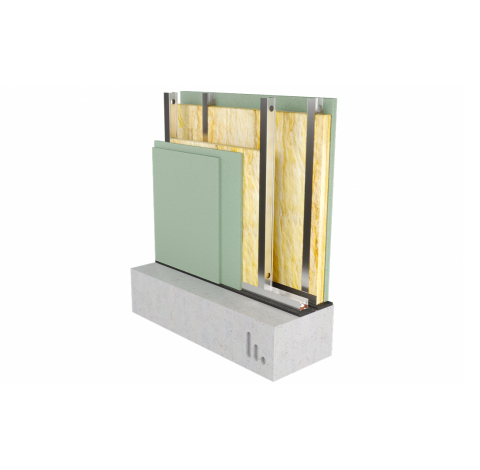

In order to specify the correct Stravilink WallStrip solution our engineers will need to know the required acoustic performance, wall type and dimensions, and possible live loads. If necessary this system can work in parallel with special resilient fastening systems, as Stravilink WH**, to reinforce the lateral stiffness of the isolated wall.

*Previously known as CDM-WALL-STRIP

**Previously known as CDM-WH
