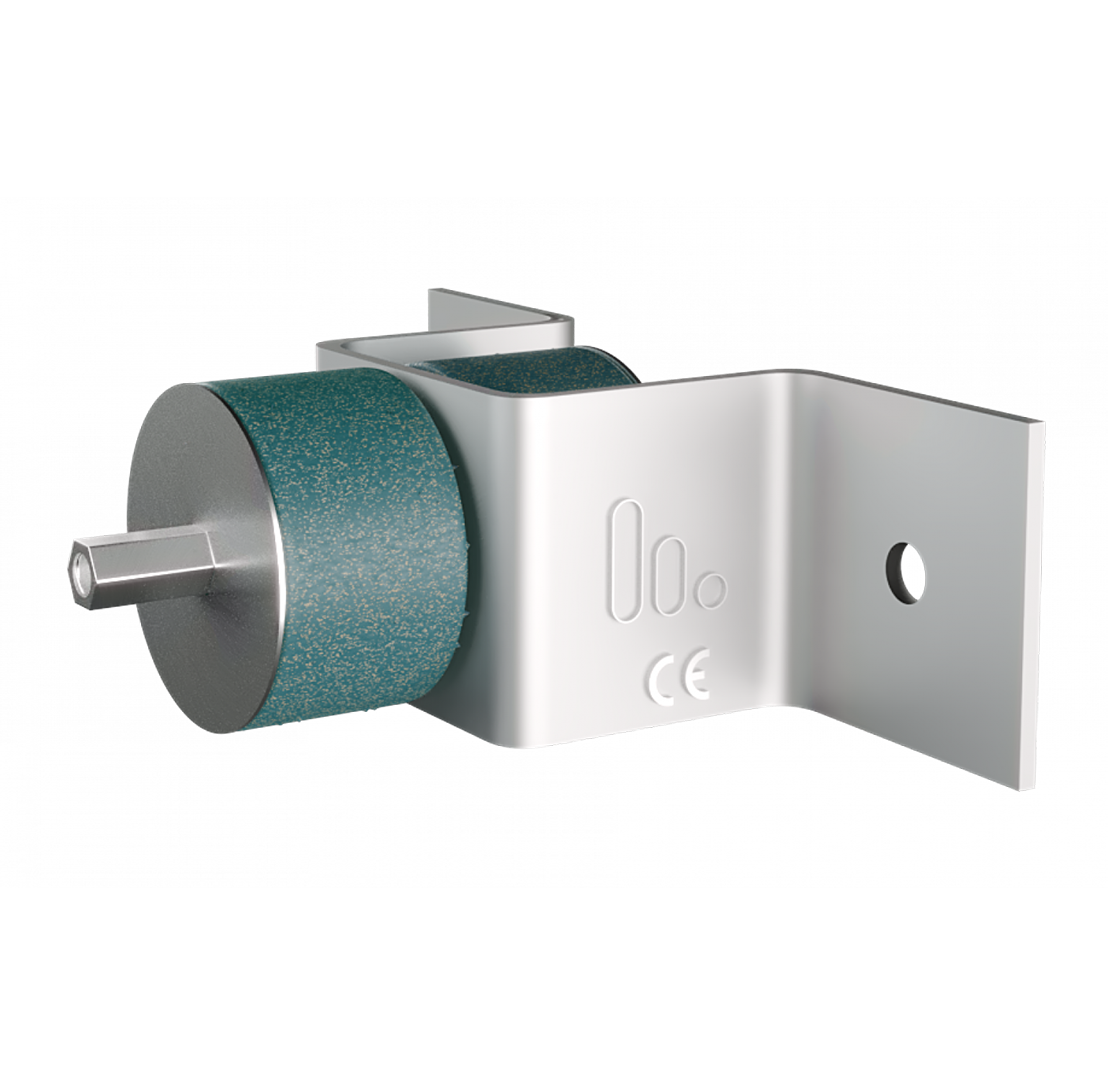

• Stravilink WH

Features

• Fixings can be adapted to wall type
• Cost effective
• Easy to install
• Minimum void depth between walls is 60 mm
• Standard wall tie (Stravilink WH-350) is designed to take maximum 50 kg lateral force
• Can be adapted to meet different void depths and lateral forces
• Steel elements are Zinc plated
• For optimum results resilient strips should be used to provide isolation between the decoupled wall and the non-isolated structure. A wide range of roll sizes are available
• To specify which Stravilink WH wall tie you require, CDM Stravitec’s engineers will need the following information:
  • Void depth
  • Construction of supported wall – stud wall, block wall etc.
  • The depth of the block wall or stud to be supported
  • The method of fixation into the supporting wall

*Previously known as CDM-WH
